| 型号 | 焦距 | F值（无限远） | 工作距离 | 视场角（H×V） | 滤光片尺寸 | 最大对应传感器尺寸 | 外观图 |
|---|---|---|---|---|---|---|---|
| MV0316 | 3.5mm | 1.6 | 0.1m〜∞ | 84.9°×68.9° | M43 P=0.75 | 1/2” |  |
| MV0614 | 6.0mm | 1.4 | 0.2m〜∞ | 54.6°×42.3° | M27 P=0.5 | 1/2” |  |
| MV0813 | 8.0mm | 1.3 | 0.2m〜∞ | 57.8°×45° | M25.5 P=0.5 | 2/3” |  |

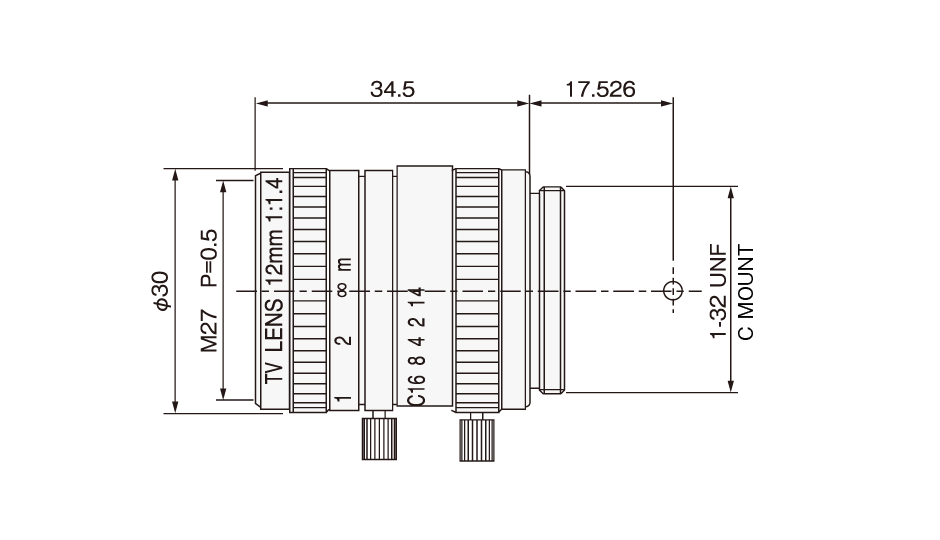

| MV1214 | 12mm | 1.4 | 0.3m〜∞ | 29°×21.9° | M27 P=0.5 | 1/2” |  |
| MV1614 | 16mm | 1.4 | 0.4m〜∞ | 30.4°×23° | M27 P=0.5 | 2/3” |  |
| MV2514 | 25mm | 1.4 | 0.5m〜∞ | 28.5°×21.6° | M27 P=0.5 | 2/3” |  |
| MV3519 | 35mm | 1.9 | 0.5m〜∞ | 14.4°×10.8° | M27 P=0.5 | 2/3” |  |
| MV5018 | 50mm | 1.8 | 1m〜∞ | 10.5°×7.9° | M30.5 P=0.5 | 2/3” |  |
| MV7527 | 75mm | 2.7 | 1m〜∞ | 6.5°×4.9° | M30.5 P=0.5 | 2/3” |  |
| MV10035 | 100mm | 3.5 | 1m〜∞ | 5.1°×3.8° | M30.5 P=0.5 | 2/3” |  |
○记载数据为设计值 ○视场角由最大对应传感器尺寸算出的数值
