| Modellname | Emissionsfarbe | Stromverbrauch | Außenmaße (W/D/H) | Ansicht von außen | |||
|---|---|---|---|---|---|---|---|
| MFD50 | W | R | B | IR | DC12V | 97mm/97mm/8mm |  |
| MFD75 | W | R | B | IR | 122mm/122mm/8mm |  |
|
| MFD100 | W | R | B | IR | 147mm/147mm/8mm |  |
|
| MFD150 | W | R | B | IR | 197mm/197mm/8mm |  |
|

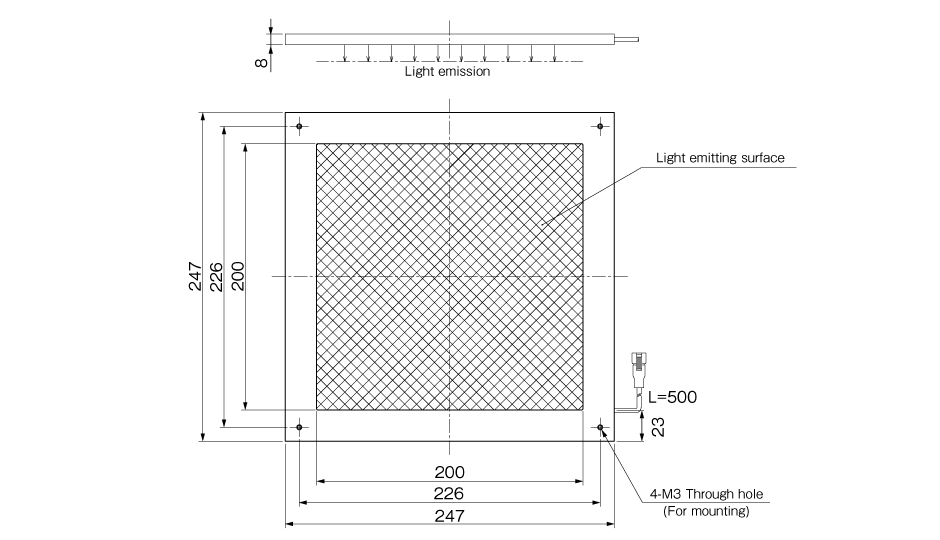

| MFD200 | W | R | B | IR | 247mm/247mm/8mm |  |
|
| MFD100_H | W | R | B | IR | DC24V | 147mm/147mm/8mm | |
| MFD150_H | W | R | B | IR | 197mm/197mm/8mm | |
|
| MFD200_H | W | R | B | IR | 247mm/247mm/8mm | |
|
| MFD300_H | W | R | B | IR | 347mm/347mm/8mm |  |
|
| MFD200/100 | W | R | B | IR | 247mm/147mm/8mm |  |
|
| MFD300/150_H | W | R | B | IR | 347mm/197mm/8mm |  |
|
| MFD400/200_H | W | R | B | 449mm/249mm/9mm |  |
||
| MFD150WR | W | R | – | – | |||
| MFD150WIR | W | IR | – | – | |||
●IR=850nm
