From low angles to high angles
Applicable to wide range of uses

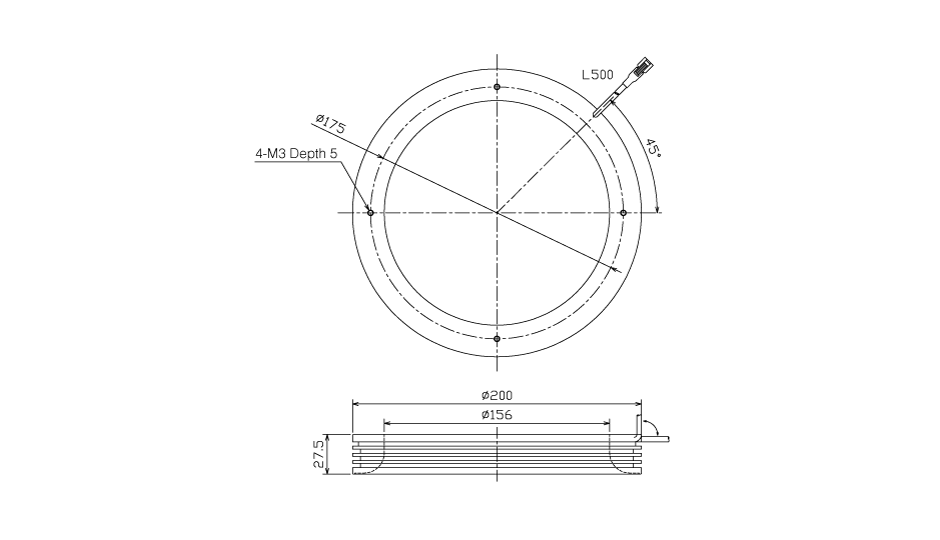

| Model | Color | Power Consumption (W) | SAG* | Dimensions |
|---|---|---|---|---|
| MRV-55□ | R | 5 | D3 |  |
| W | 6 | B8 | ||
| DB | 5.5 | A6 | ||
| MRV-80□ | R | 10 | AC |  |
| W | 11 | A0 | ||
| DB | 10 | 8F | ||
| MRV-110□ | R | 15 | AF |  |
| W | 17 | A4 | ||
| DB | 15 | 92 | ||
| MRV-130□ | R | 18 | A9 |  |
| W | 20 | 90 | ||
| DB | 18 | 8C | ||
| MRV-160□ | R | 23 | AC |  |
| W | 25 | A2 | ||
| DB | 23 | 91 | ||
| MRV-200□ | R | 29 | A6 |  |
| W | 30 | A6 | ||
| DB | 29 | 95 |
● AR= Red, W = White, B = Blue, in ☐.
● Input voltage is DC12V, but we can also make DC24V products.
*SAG is the maximum voltage setting for a SAG power supply. See details here.
