Design for 2-5 Mega Pixel Compact and high durability
Design for FT series,Telecentric Lens for 2-5Mega Pixel
□= light color（R=RED、G=GREEN、B=BLUE、W=WHITE）

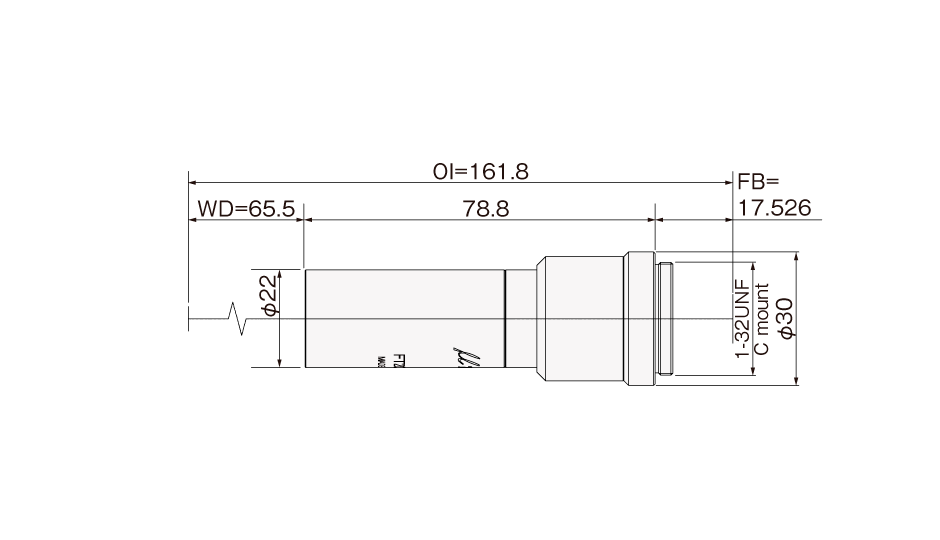

Compact size Coaxial spotlight
| Model | Magnification | F No. | Object side NA | WD | OI | Depth of field | Resolution | TV distortion |
Maximum Compatible sensor |
Mount |
Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT05-65R | 0.5x | 9.1 | 0.028 | 66mm | 169.6mm | 2.91mm | 12.2μ | 0.00% | 2/3” | C |  |
| FT08-65R | 0.8x | 9.5 | 0.042 | 65.8mm | 150.3mm | 1.19mm | 8.0μ | 0.00% | 2/3” | C |  |
| FT10-65R | 1.0x | 9.7 | 0.052 | 65.8mm | 157.7mm | 0.78mm | 6.5μ | 0.00% | 2/3” | C |  |
| FT15-65R | 1.5x | 10.6 | 0.071 | 65.5mm | 156.9mm | 0.38mm | 4.7μ | 0.00% | 2/3” | C |  |
| FT20-65R | 2.0x | 12.5 | 0.08 | 65.5mm | 161.8mm | 0.25mm | 4.2μ | 0.00% | 2/3” | C |  |
| FT30-65R | 3.0x | 12.5 | 0.12 | 65mm | 186.2mm | 0.11mm | 2.8μ | -0.01% | 2/3” | C |  |
| FT40-65R | 4.0x | 16 | 0.125 | 65mm | 192mm | 0.08mm | 2.7μ | -0.01% | 2/3” | C |  |
| FT60-65R | 6.0x | 24 | 0.125 | 65mm | 207.7mm | 0.05mm | 2.7μ | 0.00% | 2/3” | C |  |
| FT05C-65R | 0.5x | 9.1 | 0.028 | 65.5mm | 169.6mm | 2.91mm | 12.2μ | 0.00% | 2/3” | C |  |
| FT08C-65R | 0.8x | 9.5 | 0.042 | 65.8mm | 150.3mm | 1.19mm | 8.0μ | 0.00% | 2/3” | C |  |
| FT10C-65R | 1.0x | 9.7 | 0.052 | 65.8mm | 157.7mm | 0.78mm | 6.5μ | 0.00% | 2/3” | C |  |
| FT15C-65R | 1.5x | 10.6 | 0.071 | 65.5mm | 156.9mm | 0.38mm | 4.7μ | 0.00% | 2/3” | C |  |
| FT20C-65R | 2.0x | 12.5 | 0.08 | 65.5mm | 161.8mm | 0.25mm | 4.2μ | 0.00% | 2/3” | C |  |
| FT30C-65R | 3.0x | 12.5 | 0.12 | 65mm | 186.2mm | 0.11mm | 2.8μ | -0.01% | 2/3” | C |  |
| FT40C-65R | 4.0x | 16 | 0.125 | 65mm | 192mm | 0.08mm | 2.7μ | -0.01% | 2/3” | C |  |
| FT60C-65R | 6.0x | 24 | 0.125 | 65mm | 207.7mm | 0.05mm | 2.7μ | 0.00% | 2/3” | C |  |
○Indicated specifications are design values. ○Resolution indicates a theoretical resolution at a wavelength of 550nm. ○Depth of field is calculating assuming a horizontal 320 TV resolution using 1/2 inch camera (permissible circle of confusion 40μ).
