Possible to capture differences and defects that cannot be seen in visible ray
| Model | Magnification | F No. | Object side NA | WD | OI | Depth of field |
Resolution |
TV distortion | Maximum Compatible sensor |

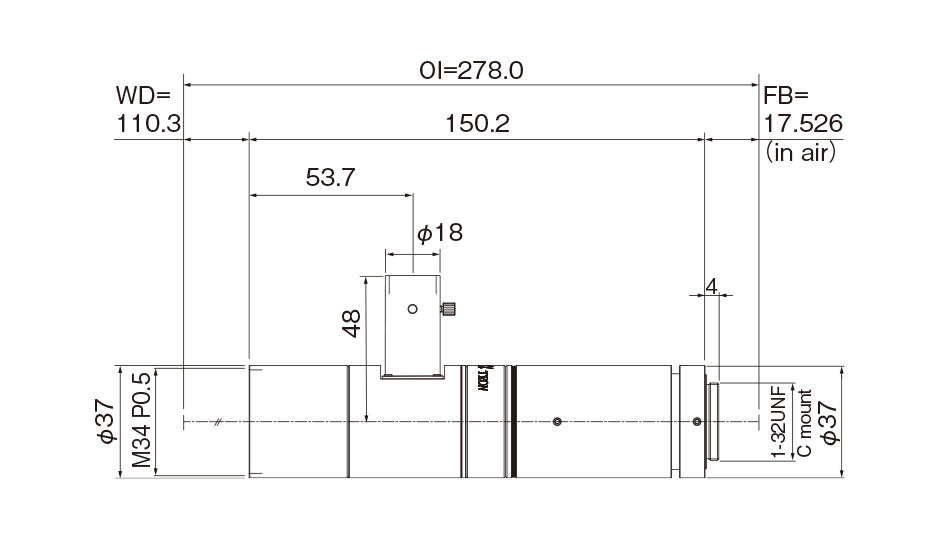

Mount | Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FTV10C-110SW | 1.0x | 7.0 | 0.071 | 110.0mm | 258.9mm | 0.56mm | 10.3μ | 0.02% | 1.1” | C |  |
| FTV20C-110SW | 2.0x | 11.5 | 0.087 | 110.2mm | 280.1mm | 0.23mm | 8.4μ | 0.03% | 1.1” | C |  |
| FTV40C-110SW | 4.0x | 20.0 | 0.100 | 110.3mm | 290.5mm | 0.10mm | 7.3μ | 0.02% | 1.1” | C |  |
| FTV10-110SW | 1.0x | 7.0 | 0.071 | 110.0mm | 258.9mm | 0.56mm | 10.3μ | 0.02% | 1.1” | C |  |
| FTV20-110SW | 2.0x | 11.5 | 0.087 | 110.2mm | 280.1mm | 0.23mm | 8.4μ | 0.03% | 1.1” | C |  |
○Indicated specifications are design values ○Resolution indicates a theoretical resolution at wavelength of 1200nm
○ Depth of field is calculated assuming permissible circle of confusion is 40μm
SWIR 150W Halogen Light Source
| Model | Wavelength | Input Voltage | Light guide | Option |
|---|---|---|---|---|
| MYHA150-VR | 400～1700nm | AC100V～240V | Heat resisting temperature | Output Control |
LED Spotlight
| Model | MSL22-1050SWH | MSL22-1100SW | MSL22-1450SW | MSL22-1550SW |
|---|---|---|---|---|
| Wavelength | 1050nm | 1100nm | 1450nm | 1550nm |
