Magnification:1x
View comparison image between 1.1″12MP
camera and 2/3″ 5MP camera
Possible to capture about 1.7x field of view
2/3″ 5Mega Pixel
1.1″ 12Mega Pixel
Design for FTV series, Telecentric Lens for 25 Mega Pixel
□= light color（R=RED、G=GREEN、B=BLUE、W=WHITE）
| Model | Magnification | F No. | Object side NA | WD |
OI |
Depth of field | Resolution | TV distortion | Maximum Compatible sensor | Mount | Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FTV05 -150 | 0.5x | 6.3 | 0.040 |
152.6mm |
294.1mm |
2mm |
8.4μ |
0.00％ | 1.1” | C |  |
| FTV07 -150 | 0.7x |
9.0 |
0.039 |
151.1mm |
292.2mm |
1.47mm |
8.6μ |
0.00％ |
1.1” |
C |  |
| FTV08 -150 | 0.8x |
8.1 |
0.050 |
151.1mm |
296.8mm |
1.01mm |
6.8μ |
0.00％ |
1.1” |
C |  |
| FTV10 -150 | 1.0x |
9.1 |
0.055 |
151.9mm |
298.8mm |
0.73mm |
6.1μ |
0.00％ | 1.1” | C |  |
| FTV15 -150 |
1.5× |
11.8 |
0.064 |
150.7mm |
316.3mm |
0.42mm |
5.3μ |
0.00％ | 1.1” | C |  |
| FTV20 -150 |
2.0× |
13.5 |
0.074 |
150.7mm |
339.6mm |
0.27mm |
4.5μ |
0.00％ |
1.1” |
C |  |
| FTV30 -150 |
3.0× |
17.4 |
0.086 |
150.1mm |
350.2mm |
0.16mm |
3.9μ |
0.00％ |
1.1” |
C |  |
| FTV40 -150 |
4.0× |
22.0 |
0.091 |
150.1mm |
354.8mm |
0.11mm |
3.7μ |
0.00％ | 1.1” | C |  |
| FTV60 -150 |
6.0× |
33.0 |
0.091 |
150.1mm |
365.9mm |
0.07mm |
3.7μ |
0.01％ |
1.1” | C |  |

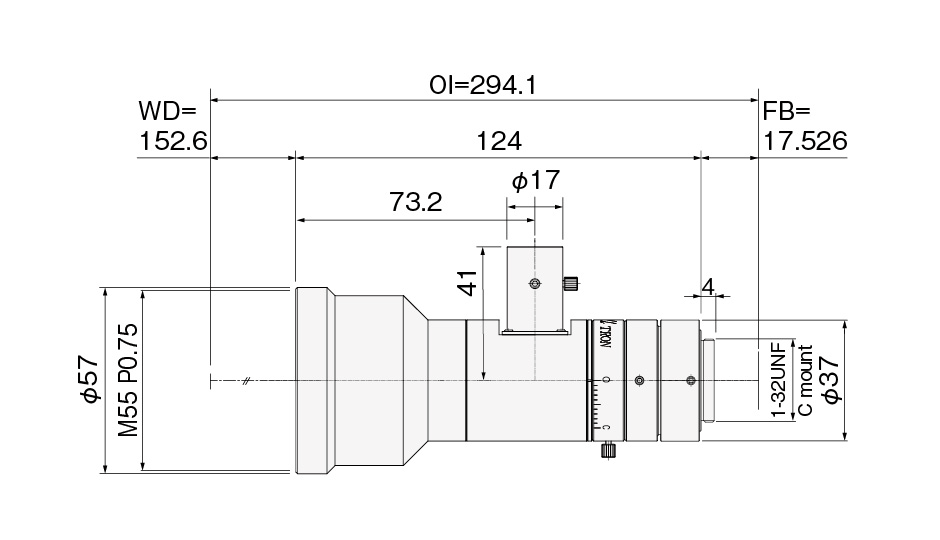

| FTV05C -150 | 0.5x | 6.3 | 0.040 |
152.6mm |
294.1mm |
2mm |
8.4μ |
0.00％ | 1.1” | C |  |
| FTV07C -150 | 0.7x |
9.0 |
0.039 |
151.1mm |
292.2mm |
1.47mm |
8.6μ |
0.00％ |
1.1” |
C |  |
| FTV08C -150 | 0.8x |
8.1 |
0.050 |
151.1mm |
296.8mm |
1.01mm |
6.8μ |
0.00％ |
1.1” |
C |  |
| FTV10C -150 | 1.0x |
9.1 |
0.055 |
151.9mm |
298.8mm |
0.73mm |
6.1μ |
0.00％ | 1.1” | C |  |
| FTV15C -150 |
1.5× |
11.8 |
0.064 |
150.7mm |
316.3mm |
0.42mm |
5.3μ |
0.00％ | 1.1” | C |  |
| FTV20C -150 |
2.0× |
13.5 |
0.074 |
150.7mm |
339.6mm |
0.27mm |
4.5μ |
0.00％ |
1.1” |
C |  |
| FTV30C -150 |
3.0× |
17.4 |
0.086 |
150.1mm |
350.2mm |
0.16mm |
3.9μ |
0.00％ |
1.1” |
C |  |
| FTV40C -150 |
4.0× |
22.0 |
0.091 |
150.1mm |
354.8mm |
0.11mm |
3.7μ |
0.00％ | 1.1” | C |  |
| FTV60C -150 |
6.0× |
33.0 |
0.091 |
150.1mm |
365.9mm |
0.07mm |
3.7μ |
0.01％ |
1.1” | C |  |
○Indicated specifications are design values.
