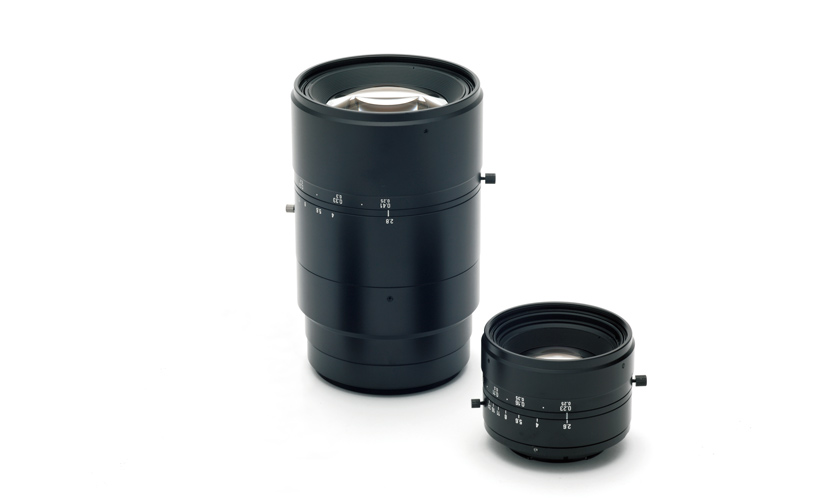

Design for macro imaging, suitable for large area and line scan camera
| Model | Magnification |
∞ F No. |
Range of WD | Magnification at MOD | Optical distortion | Maximum Compatible sensor |
Mount | Dimension |
|---|---|---|---|---|---|---|---|---|
| FV3526L-C | 35mm | 2.6 | 0.18m〜∞ | 0.2x | -0.05% | 4/3″（φ22.6mm） | C |  |
| FV3526L-F | 35mm | 2.6 | 0.18m〜∞ | 0.2x | -0.42% | φ36mm | F |  |
| FV5026L-C | 50mm | 2.6 | 0.25m〜 1m | 0.22x | -0.01% | 4/3″（φ22.6mm） | C |  |
| FV5026L-F | 50mm | 2.6 | 0.25m〜1m | 0.22x | -0.24% | φ45mm | F |  |
| FV5026LⅡ-F | 50mm | 2.6 | 0.17m〜0.35m | 0.32x | -0.80% | φ45mm | F |  |
| FV8528L-□ | 85mm | 2.8 | 0.25m〜1m | 0.4x | -0.18% | φ62mm | F or M72 |  |
○Indicated specifications are design value. ○□ = Mount:
| Model No. for Different Mount | |||
|---|---|---|---|
| Model | Compatible Camera | Screw Pitch | Flange Back |
| FV8528L-F | F Mount Camera | F Mount | 46.5mm |
| FV8528L-N | NED | M72 （P=0.75） | 31.8mm |
| FV8528L-M | TELEDYNE DALSA／TAKEX | M72 （P=0.75） | 19.55mm |
| FV8528L-D | TELEDYNE DALSA | M72 （P=0.75） | 12mm |
| FV8528L-VW | VIEWORKS | M72 （P=0.75） | 10.2mm |
○Customized mount is also available. Please contact us for further information.
