Suitable for 4 MP, 5MP, 9MP for 1”, 12MP for 1.1”
| Model | Focal length | ∞ F No. | Range of WD | TV distortion | Angle of view (V x H) | Filter pitch | Maximum Compatible sensor |
Dimension |
|---|---|---|---|---|---|---|---|---|

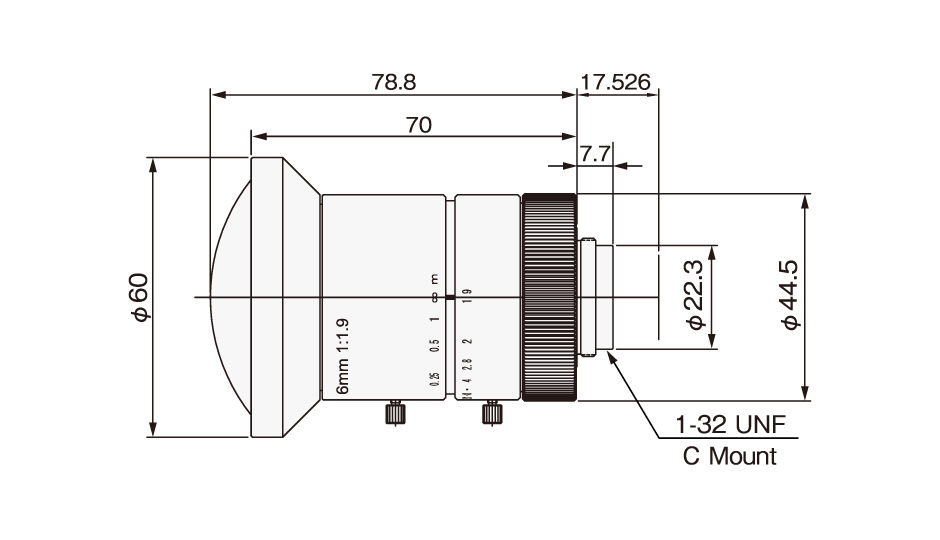

| HS0619V | 6mm | 1.9 | 100mm～∞ | 0.83% | 94.7°×78.1° | – | 1” |  |
| HS0818V | 8mm | 1.8 | 100mm～∞ | -0.17% | 78.1°×62.1° | M58 P=0.75 | 1” |  |
| HS1214V | 12.5mm | 1.4 | 300mm～∞ | -0.69% | 54.9°×42.2° | M40.5 P=0.5 | 1” |  |
| HS1614V | 16mm | 1.4 | 300mm～∞ | -0.85% | 44.2°×33.5° | M40.5 P=0.5 | 1” |  |
| HS2514V | 25mm | 1.4 | 300mm～∞ | -0.02% | 28.6°×21.6° | M40.5 P=0.5 | 1” |  |

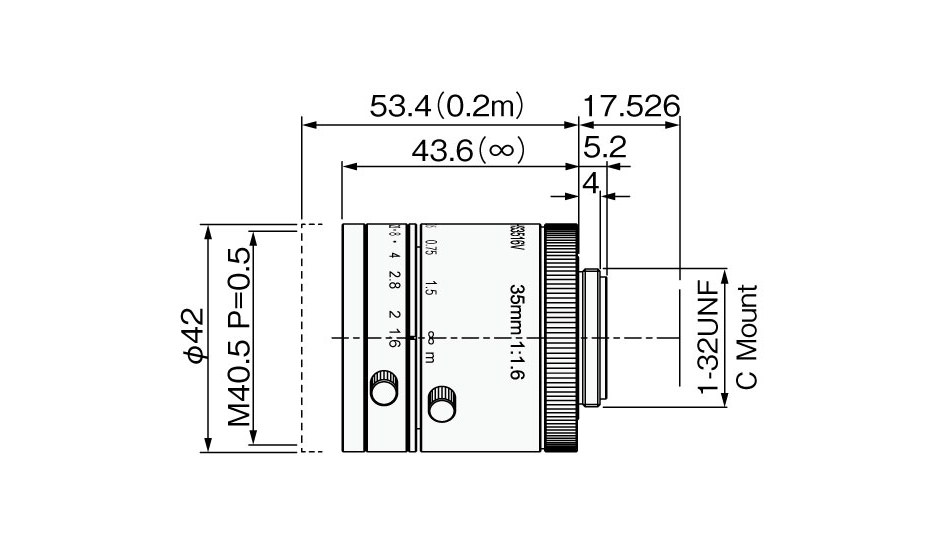

| HS3516V | 35mm | 1.6 | 200mm～∞ | 0.12% | 22.1°×16.7° | M40.5 P=0.5 | 1.1” |  |
| HS5016V | 50mm | 1.6 | 300mm～∞ | 0.14% | 16.1°×12.1° | M40.5 P=0.5 | 1.1” |  |
| HS7520V | 75mm | 2.0 | 440mm～∞ | 0.05% | 11.1°×8.3° | M40.5 P=0.5 | 1.1” |  |
| HS10028V | 100mm | 2.8 | 620mm～∞ | 0.09% | 8.4°×6.3° | M46 P=0.75 | 1.1” |  |
○Indicated specifications are design values. ○TV distortion indicates a value for minimum working distance. ○Angle of view indicates a value for maximum compatible sensor.
