Possible to capture wide field of view with high resolution
| Model | Magnification | F No. | Object side NA | WD | OI | Depth of field | Resolution | TV distortion | Maximum Compatible sensor |
Mount |

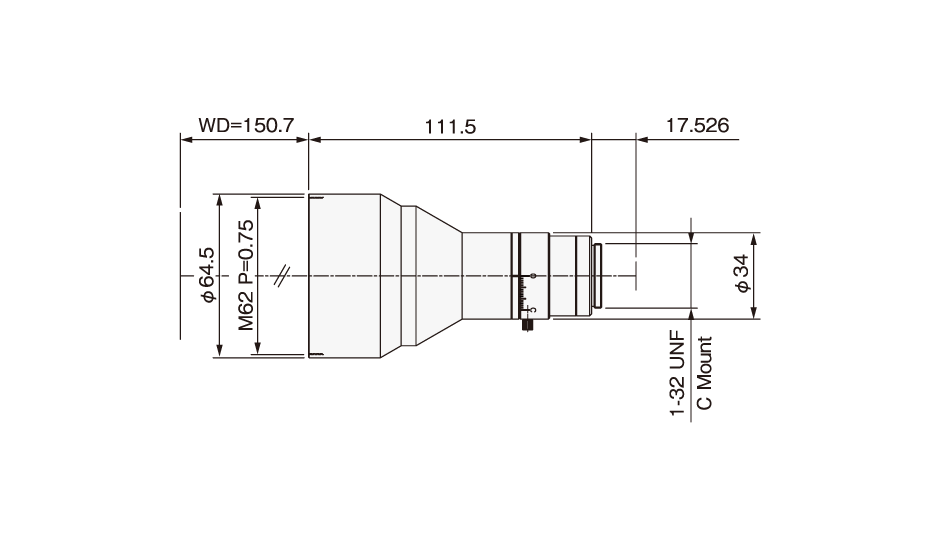

Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MGTL014VM | 0.14x | 4.3 | 0.016 | 150.3mm | 300.6mm | 17.5mm |
20.5μ |
0.01％ | 2/3” | C |  |
| MGTL014VM-180 | 0.14x | 4.4 | 0.016 | 180mm | 330.2mm | 18mm | 21μ | -0.01％ | 2/3” | C |  |
| MGTL017VM | 0.17x | 5.2 | 0.016 | 150.6mm | 294.7mm | 14.4mm | 20.5μ | 0.00％ | 2/3” | C |  |
| MGTL019VM | 0.19x | 5.7 | 0.017 | 150.6mm | 298.6mm | 12.6mm | 20.1μ | 0.00％ | 2/3” | C |  |
| MGTL022VM | 0.22x | 5.2 | 0.021 | 150.7mm | 279.7mm | 8.5mm | 15.8μ | 0.00％ | 2/3” | C |  |
○Indicated specifications are design values. ○Resolution indicates a theoretical resolution at a wavelength of 550nm. ○Depth of field is calculated assuming permissible circle of confusion is 40μm.
