Suitable for the inspection in ultra high accuracy
| Model | Magnification | F No. | Object side NA | WD | OI | Depth of field | Resolution | TV distortion | Maximum Compatible sensor |
Mount |

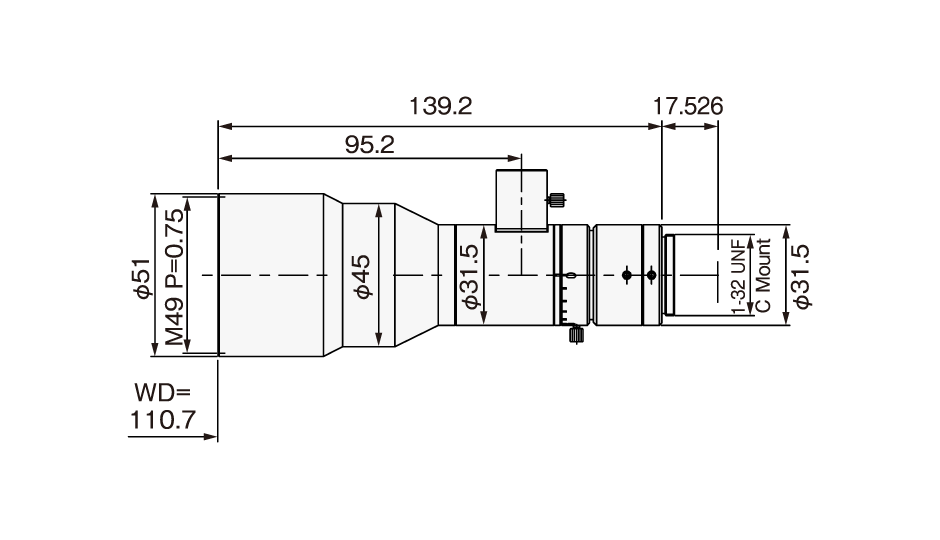

Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MGTL023H | 0.23x | 5.2 | 0.022 | 109mm | 241mm | 7.9mm | 8.7μ | 0.00％ | 2/3” | C |  |
| MGTL03VM | 0.3x | 5.0 | 0.03 | 111mm | 263mm | 4.4mm | 6.6μ | -0.04％ | 2/3” | C |  |
| MGTL0345VM | 0.345x | 4.9 | 0.035 | 111mm | 267mm | 3.3mm | 5.5μ | 0.00％ | 2/3” | C |  |
| MGTL04VM | 0.4x | 5.0 | 0.04 | 109mm | 275mm | 2.5mm | 4.9μ | 0.00％ | 2/3” | C |  |
| MGTL05VM | 0.5x | 4.7 | 0.05 | 109mm | 288mm | 1.5mm | 3.8μ | -0.03％ | 2/3” | C |  |
| MGTL069VM | 0.69x | 6.6 | 0.052 | 109mm | 307mm | 1.1mm | 3.9μ | -0.04％ | 2/3” | C |  |
| MGTL03VMC | 0.3x | 5.0 | 0.03 | 111mm | 267mm | 4.4mm | 6.6μ | -0.04 | 2/3” | C |  |
| MGTL0345VMC | 0.345x | 4.9 | 0.035 | 111mm | 272mm | 3.3mm | 5.5μ | 0.00％ | 2/3” | C |  |
| MGTL04VMC | 0.4x | 5.0 | 0.04 | 109mm | 280mm | 2.5mm | 4.9μ | 0.00％ | 2/3” | C |  |
| MGTL05VMC | 0.5x | 4.7 | 0.05 | 109mm | 293mm | 2.3mm | 3.8μ | -0.03％ | 2/3” | C |  |
| MGTL069VMC | 0.69x | 6.6 | 0.052 | 109mm | 312mm | 1.1mm | 3.9μ | -0.04％ | 2/3” | C |  |
| MGTL10V | 1.0x | 5.4 | 0.093 | 71mm | 196mm | 0.43mm | 2.5μ | 0.00％ | 1.1” | C |  |
| MGTL10VC | 1.0x | 5.4 | 0.093 | 71mm | 200mm | 0.43mm | 2.5μ | 0.00％ | 1.1” | C |  |
○Indicated specifications are design values. ○Resolution is calculated based on MTF. ○Depth of field is calculated assuming permissible circle of confusion is 40μm.
